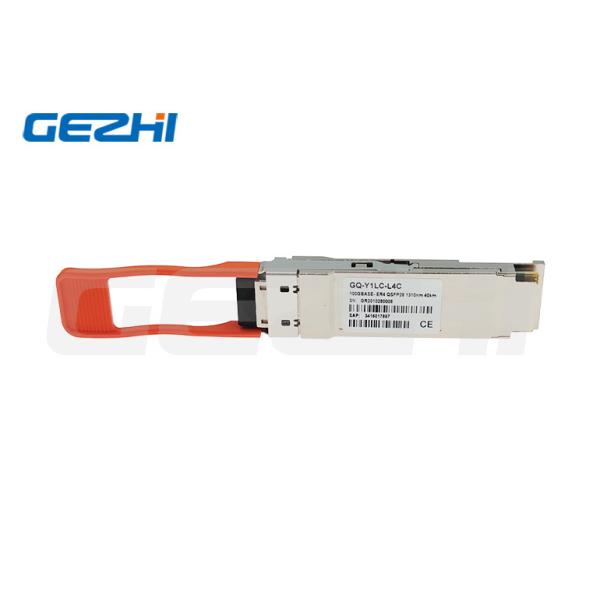

LR ER CWDW SFP Module Optical Transceiver 100G QSFP28 1310nm 10km 20km 40km

Overview

The GZ-QSFP28-ER4 is a transceiver module designed for 40km with FEC (30km without FEC) optical communication applications. The design is compliant to 100GbASE-ER4 of the IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard. The module converts 4 inputs channels (ch) of 25.78 Gbps to electricaldata to 4 lanes optical signals, and multiplexes them into a single channel for 100Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 100Gb/s input into 4 lanes signals, and converts them to 4 lanes output electrical data.

Feature

4 lanes MUX/DEMUX design
Integrated LAN WDM TOSA / ROSA for up to 40 km reach over SMF with FEC (30km without FEC)
Aggregate bandwidth of >100Gbps
DuplexLC connectors
Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard
Single +3.3V power supply operating
Built-in digital diagnostic functions
Temperature range 0°C to 70°C
RoHS Compliant Part
Support FEC (Forward Error Correction)

Order Information

Gezhi Photonics Co., Ltd is committed to being a global influential organization in optical network devices area.

Gezhi Photonics is a leading worldwide manufacturer and supplier of Fiber Optical Passive Component. Our Mainly item is CWDM/DWDM,AWG Module,Optical Switch with OEM/ODM service .

Gezhi Photonics keeps on cooperating with international and national universities, scientific-research units as well as taking advantage of its social talent, information and technology to benefit Enterprise Development. Owing to our excellent engineering services, custom design, technical support, product review, rapid sample prototyping and mass production fast delivering for our customers, we service more than 30 countries and regions including Europe, USA, Southeast Asian, Africa, Middle East, etc.

Having always taken the principle of innovation as its core merit, Gezhi Photonics attaches great importance to the internal management, boosting the development of the company with joint creativity of the team. Emphasizing the harmonious innovation atmosphere, a broad development platform is provided to the staff, and also it is helpful for the development of the company in product research, making the product always being at the advanced level.
